ISOWOOL LTC Series

Home > Products > Alkaline Earth Silicate Wool, Polycrystalline Wool > ISOWOOL LTC Series

Description

RCF FREE Low Thermal Conductivity material

LTC is a microporous material with an ultra-low thermal conductivity that is not subject to RCF regulations has been developed in response to strong demand for energy conservation in the industrial sectors. LTC Series have higher strength, better processability, and higher water resistance compared to other microporous products. It is ideal for assemblies that require high strength and water vapor diffusion resistance.

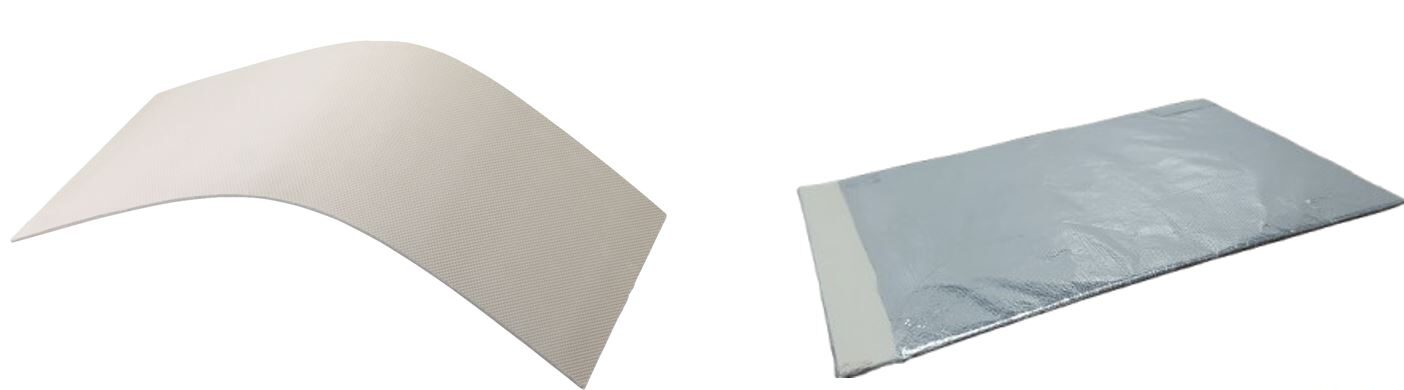

LTC-FL

LTC-FL AGCL-covered

Quality

Product Name		LTC-A	LTC-ES	LTC-MT	LTC-HT	LTC-FL
Max. Service Temperature (°C)		900	1000	1200	1400	900
Bulk Density (kg/m³)		410	250	390	430	300
Modulus of Rupture (MPa)		1.1	0.3	0.4	0.6	0.3
Thermal Conductivity (W/(m・K)) JIS A 1412-2 Plate Comparison Method *Calculation value	at 600°C	0.039	0.030	0.046	0.088	0.030
	at 800°C*	0.047	0.039	0.059	0.097	0.039
	at 1000°C*	–	–	0.077	0.108	–
Linear Shrinkage (%)	at 900°C×24h	0.8	–	–	–	2.9
	at 1000°C×24h	–	0.3	–	–	–
	at 1200°C×24h	–	–	1.0	–	–
	at 1400°C×24h	–	–	–	2.2	–

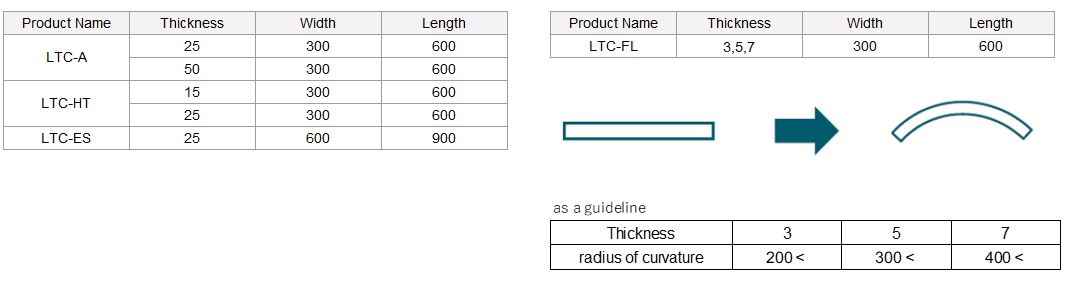

Standard Size(mm)

Product Name	Thickness	Width	Length
LTC-A	25, 50	300	600
LTC-HT	15, 25	300	600
LTC-ES	25	600	900
LTC-MT	25	300	600
LTC-FL	3, 5, 7	300	600

Bent Rectangle

as a guideline

Thickness	3	5	7
radius of curvature	200 <	300 <	400 <

Data shown are typical values obtained in accordance with accepted test methods.
They are provided for your reference only and are subject to change without notice.
